Vniva is the stocking distributor for 316-93-117-41-006000, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for 316-93-117-41-006000 by email, we will give you a best price according your plan.
Buy 316-93-117-41-006000 with Vniva
Buy with guarantee

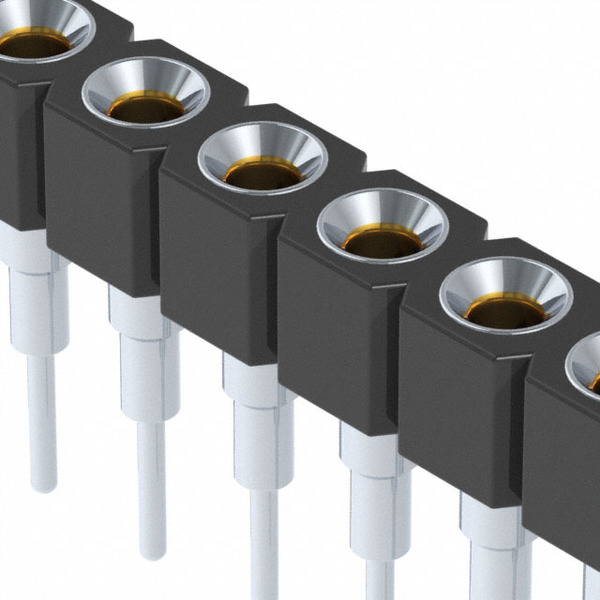

316-93-117-41-006000
- Part Number:
- 316-93-117-41-006000
- Manufacturer:
- Mill-Max
- Description:
- CONN STRIP SKT 17POS .100 L.236
- Number of stock:
- Out stock
- Lead Free Status / RoHS Status:
- Contains lead / RoHS non-compliant
Introduction
Specifications
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | 316 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Other Names: | ED5717 ED5717-ND ED5764-17 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 17 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height: | 0.236" (6.00mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 17 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating: | 3A |
| Contact Type: | Female Socket |
| Contact Shape: | Circular |
| Contact Material: | Beryllium Copper |
| Contact Length - Post: | 0.118" (3.00mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Elevated Socket |
| Applications: | - |
| Email: | RFQ@Vniva.com |
