Vniva is the stocking distributor for 399-43-148-10-003000, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for 399-43-148-10-003000 by email, we will give you a best price according your plan.
Buy 399-43-148-10-003000 with Vniva
Buy with guarantee

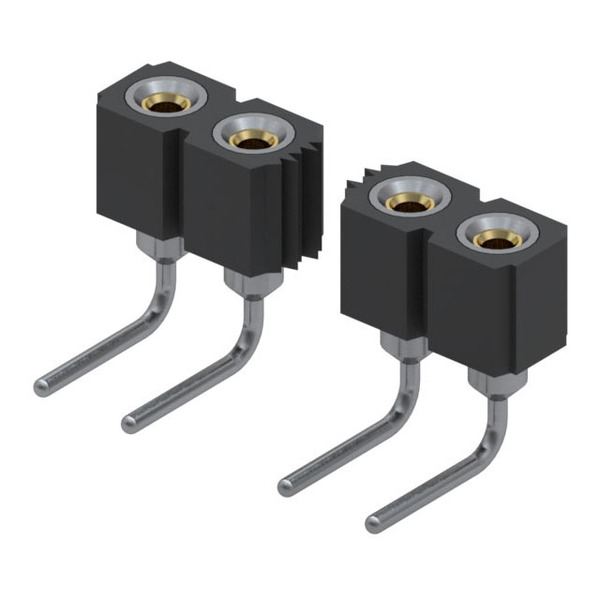

399-43-148-10-003000
- Part Number:
- 399-43-148-10-003000
- Manufacturer:
- Mill-Max
- Description:
- CONN SOCKET 48PIN R/A .100 SOLDR
- Number of stock:
- Out stock
- Lead Free Status / RoHS Status:
- Lead free / RoHS Compliant
Introduction
Specifications
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Series: | 399 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Other Names: | ED8748 ED8748-ND ED8764-48 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 48 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height: | 0.100" (2.54mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 48 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating: | 3A |
| Contact Type: | Female Socket |
| Contact Shape: | Circular |
| Contact Material: | Beryllium Copper |
| Contact Length - Post: | 0.126" (3.20mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | - |
