Vniva is the stocking distributor for 803-99-038-62-001000, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for 803-99-038-62-001000 by email, we will give you a best price according your plan.
Buy 803-99-038-62-001000 with Vniva
Buy with guarantee

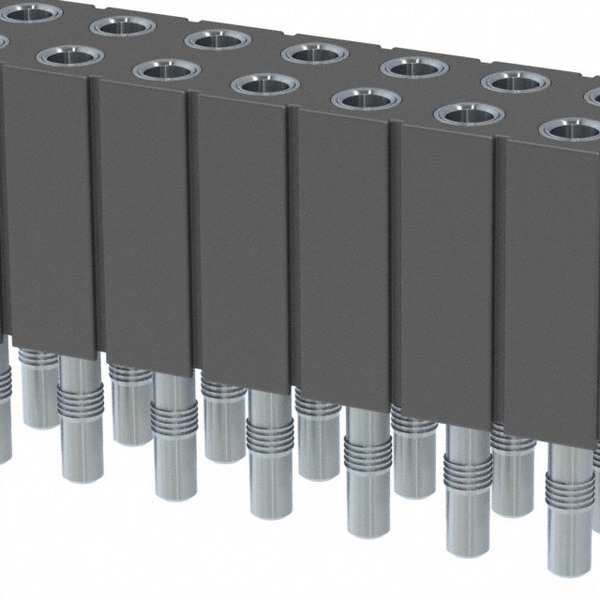

803-99-038-62-001000
- Part Number:
- 803-99-038-62-001000
- Manufacturer:
- Mill-Max
- Description:
- CONN HDR PIN
- Number of stock:
- Out stock
- Lead Free Status / RoHS Status:
- RoHS non-compliant
Introduction
Specifications
| Voltage Rating: | - |
|---|---|
| Termination: | Press-Fit, Solder |
| Style: | Board to Board |
| Series: | 803 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| RoHS Status: | RoHS non-compliant |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 38 |
| Mounting Type: | Through Hole |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Insulation Height: | 0.276" (7.00mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | 38 Position Receptacle Connector Through Hole |
| Current Rating: | 4.5A |
| Contact Type: | Female Socket |
| Contact Shape: | Circular |
| Contact Material: | Beryllium Copper |
| Contact Length - Post: | 0.143" (3.63mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Tin-Lead |
| Connector Type: | Receptacle |
| Applications: | - |
