Vniva is the stocking distributor for 852-90-082-20-001000, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for 852-90-082-20-001000 by email, we will give you a best price according your plan.
Buy 852-90-082-20-001000 with Vniva
Buy with guarantee

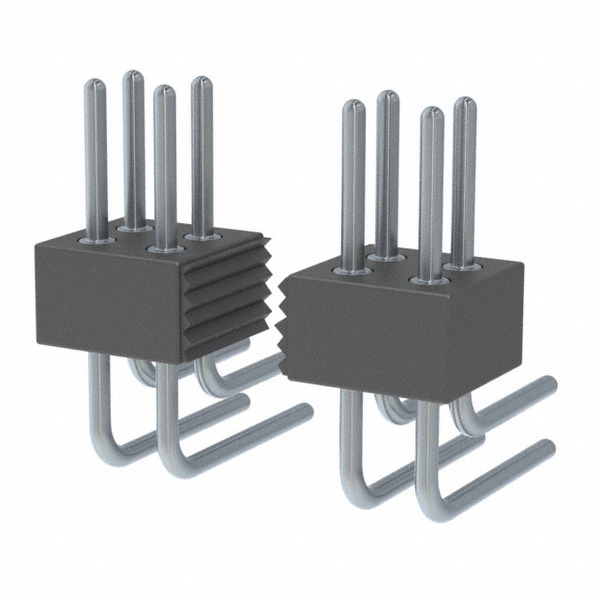

852-90-082-20-001000
- Part Number:
- 852-90-082-20-001000
- Manufacturer:
- Mill-Max
- Description:
- CONN HDR DBL RA
- Number of stock:
- Out stock
- Lead Free Status / RoHS Status:
- RoHS non-compliant
Introduction
Specifications
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Series: | 852 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| RoHS Status: | RoHS non-compliant |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 82 |
| Mounting Type: | Through Hole, Right Angle |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Insulation Material: | Polyamide (PA46), Nylon 4/6 |
| Insulation Height: | 0.120" (3.05mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole, Right Angle 82 position 0.050" (1.27mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | Brass Alloy |
| Contact Length - Post: | 0.126" (3.20mm) |
| Contact Length - Mating: | 0.118" (3.00mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 200.0µin (5.08µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Tin-Lead |
| Connector Type: | Header |
| Applications: | - |
| Email: | RFQ@Vniva.com |
