Vniva is the stocking distributor for AVE226M25D16T-F, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for AVE226M25D16T-F by email, we will give you a best price according your plan.
Buy AVE226M25D16T-F with Vniva
Buy with guarantee

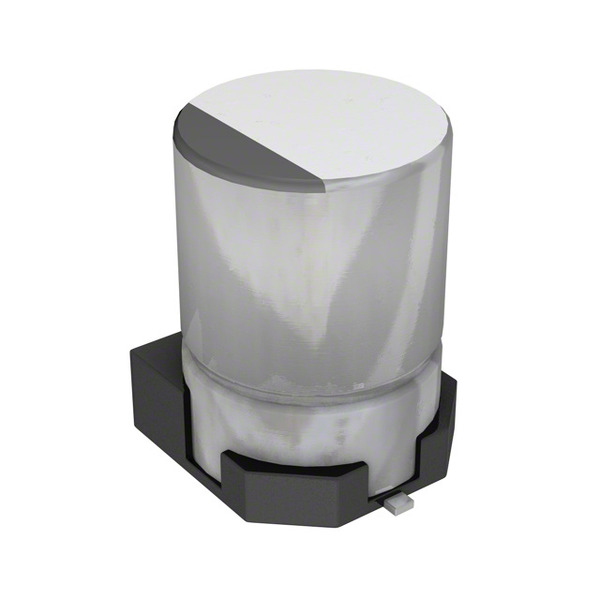

AVE226M25D16T-F
- Part Number:
- AVE226M25D16T-F
- Manufacturer:
- Cornell Dubilier Electronics
- Description:
- CAP ALUM 22UF 20% 25V SMD
- Number of stock:
- Out stock
- Lead Free Status / RoHS Status:
- Lead free / RoHS Compliant
- Data sheet:
- AVE226M25D16T-F.pdf
Introduction
Specifications
| Voltage - Rated: | 25V |
|---|---|
| Tolerance: | ±20% |
| Surface Mount Land Size: | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Size / Dimension: | 0.248" Dia (6.30mm) |
| Series: | AVE |
| Ripple Current @ Low Frequency: | 55mA @ 120Hz |
| Ripple Current @ High Frequency: | 77mA @ 10kHz |
| Ratings: | - |
| Polarization: | Polar |
| Packaging: | Original-Reel® |
| Package / Case: | Radial, Can - SMD |
| Other Names: | 338-1803-6 |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lifetime @ Temp.: | 2000 Hrs @ 85°C |
| Lead Spacing: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.209" (5.30mm) |
| ESR (Equivalent Series Resistance): | 10.55 Ohm @ 120Hz |
| Detailed Description: | 22µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 10.55 Ohm @ 120Hz 2000 Hrs @ 85°C |
| Capacitance: | 22µF |
| Applications: | General Purpose |
| Email: | RFQ@Vniva.com |
