Vniva is the stocking distributor for EZP-E80156MTA, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for EZP-E80156MTA by email, we will give you a best price according your plan.
Buy EZP-E80156MTA with Vniva
Buy with guarantee

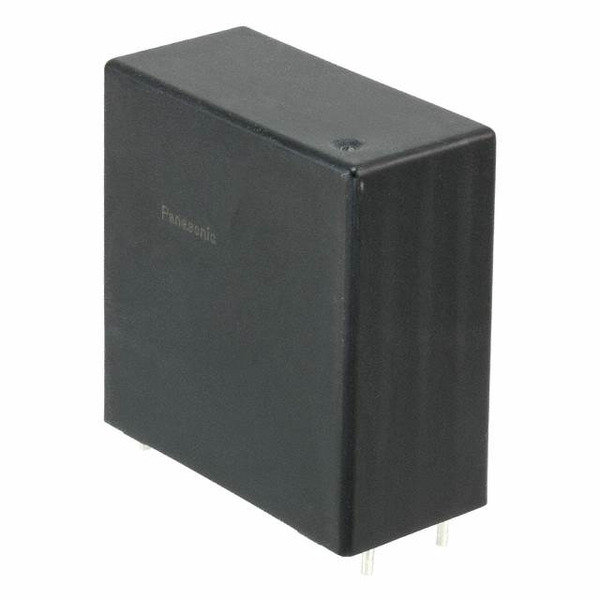

EZP-E80156MTA
- Part Number:
- EZP-E80156MTA
- Manufacturer:
- Panasonic
- Description:
- CAP FILM 15UF 10% 800VDC RAD 4LD
- Number of stock:
- 103 pcs
- Lead Free Status / RoHS Status:
- Lead free / RoHS Compliant
- Data sheet:
- EZP-E80156MTA.pdf
Introduction
Specifications
| Voltage Rating - DC: | 800V |
|---|---|
| Voltage Rating - AC: | - |
| Tolerance: | ±10% |
| Termination: | PC Pins |
| Size / Dimension: | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Series: | EZPE |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Radial - 4 Leads |
| Other Names: | EZPE80156MTA P15520 |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Spacing: | 1.476" (37.50mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 1.654" (42.00mm) |
| Features: | Low ESR |
| ESR (Equivalent Series Resistance): | 10.5 mOhms |
| Dielectric Material: | Polypropylene (PP), Metallized |
| Detailed Description: | 15µF Film Capacitor 800V Polypropylene (PP), Metallized Radial - 4 Leads |
| Capacitance: | 15µF |
| Applications: | DC Link, DC Filtering |
| Email: | RFQ@Vniva.com |
