Vniva is the stocking distributor for FP30-85, we have the stocks for immediate shipping and also available for long time supply. Please send us your purchase plan for FP30-85 by email, we will give you a best price according your plan.
Buy FP30-85 with Vniva
Buy with guarantee

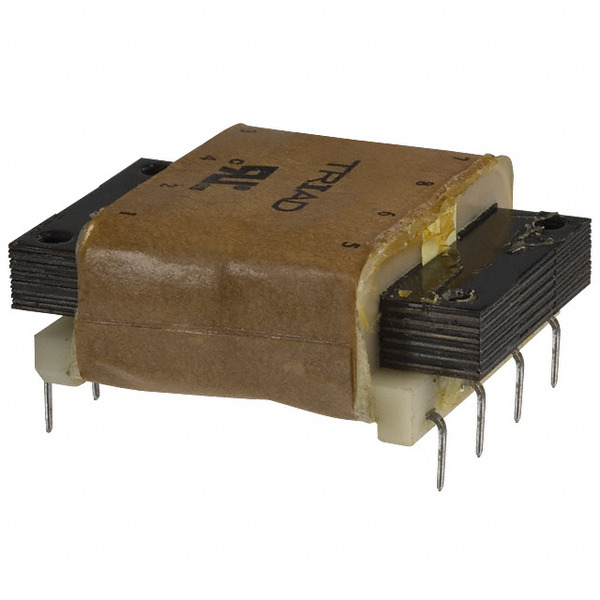

FP30-85
- Part Number:
- FP30-85
- Manufacturer:
- Triad Magnetics
- Description:
- XFRMR LAMINATED 2.5VA THRU HOLE
- Number of stock:
- 80 pcs
- Lead Free Status / RoHS Status:
- Lead free / RoHS Compliant
- Data sheet:
- FP30-85.pdf
Introduction
Specifications
| Weight: | 0.313 lb (141.97g) |
|---|---|
| Voltage - Secondary (Full Load): | Parallel 15V, Series 30V |
| Voltage - Primary: | 115V, 230V |
| Voltage - Isolation: | 2000Vrms |
| Type: | Laminated Core |
| Termination Style: | PC Pin |
| Size / Dimension: | 47.63mm L x 39.67mm W |
| Series: | FP |
| Secondary Winding(s): | Dual |
| Primary Winding(s): | Dual |
| Power - Max: | 2.5 VA |
| Other Names: | 10428 237-1013 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 16.51mm |
| Current - Output (Max): | Parallel 160mA, Series 80mA |
| Center Tap: | No |
| Email: | RFQ@Vniva.com |
